Double Layer Automatic paper lid cover making machine
This automatic  roller die-cutting machine  has a high stability, high safety performance, high precision of the finished product, it’s widely used in printing, packaging and paper products industries
INQUIRY
Product Description
Technical Parameters
Machine Details

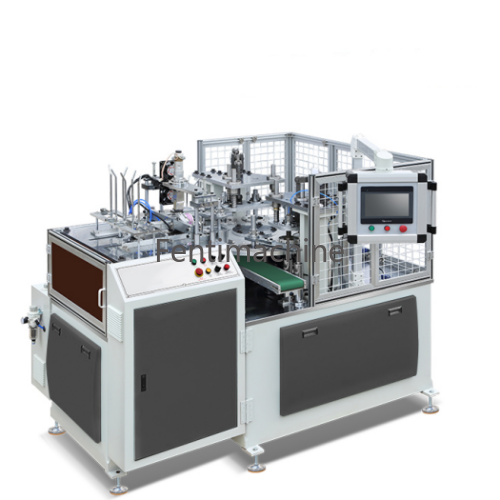

                                   Double Layer Automatic Paper Lid Forming Machine





Instruction:

This machine is the professional equipment for making paper lid , such as coffee cup cover,paper cup cover.etc . As it no need pipe

making and pipe forming ,  no need glue . It is working like paper cup machine. High stability with high quality.



Sample:

图片12.jpg  图片13.jpg





NameAutomatic paper lid machine(hot need/PE coated paper)Automatic paper cover machine
ModelFT-70J
Paper Lid Diameter130-190mm
Paper weight300-480gsm
Paper Lid Height16-25mm
Paper cover diameter65-125mm  (If only one size , can do max 137mm)
Raw materialSuitable paper weight300--450gsm(PE Coated Paper)
Lid Core paperDouble or Single PE
Round side paper of lidSingle PE
Speed40-50pcs/min
Working Air Source0.4MPa, 0.12m3/min(Not included air compressor)
Power8kw
Weight3500KGS
Package size2200*1600*1850mm
Voltage220V/380V/3phase 50HZ


1.The rectangular、square、oval paper cover forming machine series equipment adopts the world's leading technology, has the advantages of stable performance, high efficiency, environmental protection and energy saving, and fully fills the blank of domestic paper cover machines. It is a patented product of our company.

2.Rectangular、square、oval paper lid forming machine series equipment is the ideal equipment for producing paper lids for soup bowls, instant noodle bowls , ice cream paper cup lids , chocolate box lids and other special-shaped container lids . The automatic paper lid forming machine is easy tooperate , stable in performance,small in area and high in efficiency.
