Middle Speed Paper Bowl Machine

Automatic paper cup forming machine is stronger and small deformation, automatic lubrication system, which makes all mechanical parts working much more smoothly. The cup bottom adopts the stretching die which make the bottom sealing quality better and less leaking percentage. It has PLC control, sensor failure detecting system, cup bottom paper feeding controlled by servo motor, bottom paper will be delivered when cup tube comes, otherwise no bottom paper delivery. The machine has safety guard to protect the people working safely. It has working speed 65pcs/min, with Ultrasonic sealing, automatic lubrication, PLC control and touch screen, safety guard and stacker

INQUIRY

Product Description

Technical Parameters

Machine Details

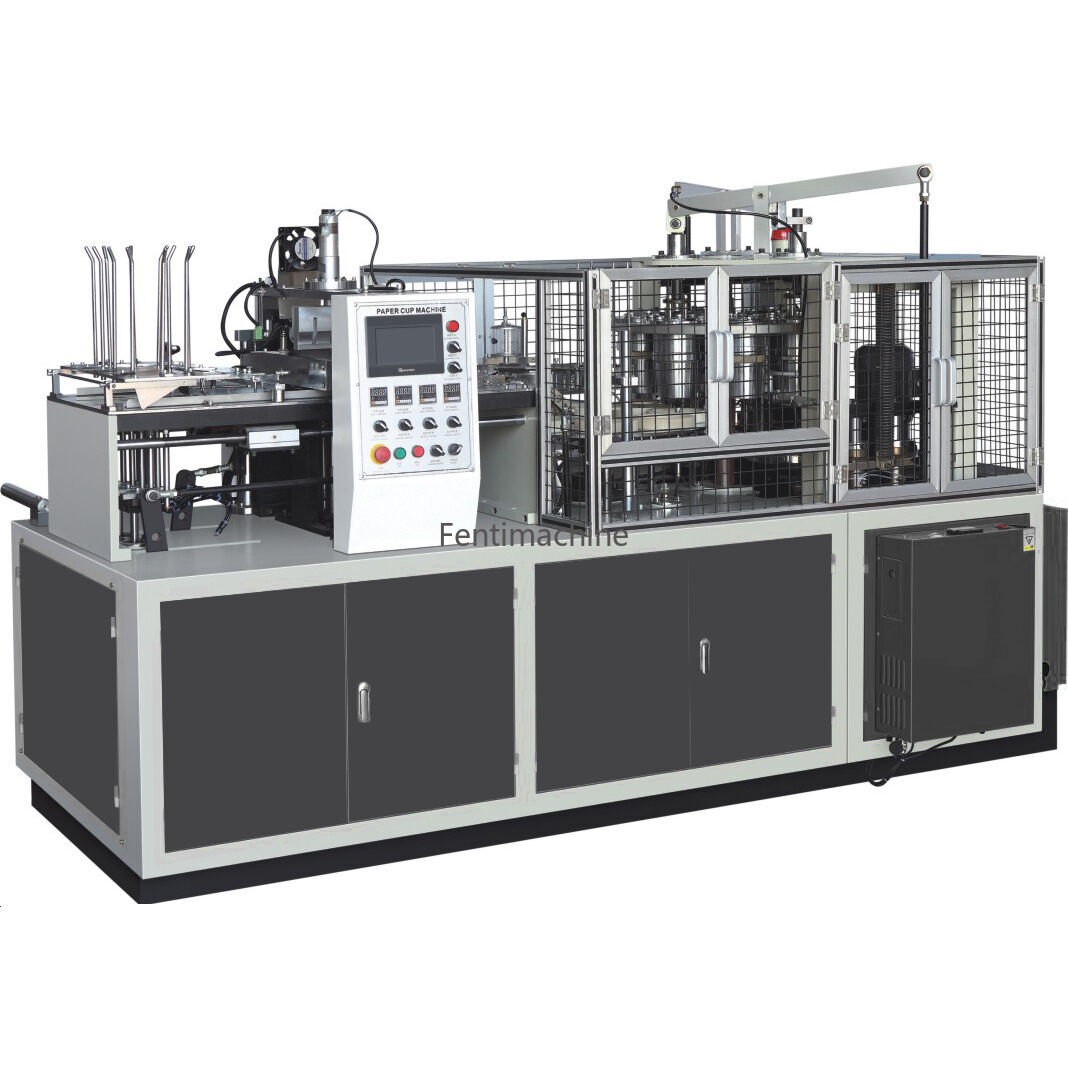

Middle Speed Paper Bowl Machine

Sample:

Machine Features:

1. Middle paper cup forming machine comes with 3 turntables.

2. The whole machine adopts automatic lubrication system, which makes all mechanical parts working much more smoothly.

3. Cup side sealing by ultrasonic.

4. The machine comes with PLC control system, sensor failure detecting and it stops working automatically if the machine has any problem, it can greatly improve operation

safety and reducing labor cost.

5. It is easy to make cups with different sizes by changing molds.

6. With automatic cup collection system and counter.

7. Good quality machine rack ,total machine weight 2500KGS-2800KGS,more heavily than other suppliers.To ensure machine working long life and stable.

8. Note: Different cup size with different size paper cup machine.

Model	FT-B2360 Middle Speed Paper Bowl Machine
Paper Cup Specification	E-12/E-16/E-22type(mold exchangeable)
Paper Cup Specification	Top Diameter : 45-90mm Height : standard 50-110mm/E16 70-139mm E-22 110-177mm Bottom Diameter: 35-70mm Note:Pls send detailed diameter,if not within this range,we will check again with engineer to confirm again.
Paper Specification	150-380 GSM single/double PE coated paper, PLA/PBS biodegradable coated paper
Production Capacity	50-55pcs/min
Power Source	380V 50HZ 3Phases
Average Power	10KW
Air Supply Requirement	Compressed air: 0.5-0.8Mpa Air outlet: 0.4cbm/min
Total Weight	Type-12: 2600KGS/ Type-16: 2900KGS /Type-22: 3200KGS
Package Size	(LWH): 290015601900mm

1. Machine structure:

2.The paper bowl fans will be sucked down and pushed forward. And the paper bowl body sleeve will be sealed on the horizontal forming mold by ultrasonic.

3.The cup bottom will be cutted to turnplate and transit to sucked inside under of the molds and then the paper sleeve will be turned over up and go through the molds. The molds with sleeve and bottom will be heated twice by the heaters. And then the end of the sleeve will be folded inward to get ready for sealing with the paper cup bottom. After that, the paper cup bottom will be completely sealed well by the embossing and sealing device. Then the well-bottom-formed paper cups will be transferred to the top curling turntable to form the top curling.

4.The cup top has been moistened by the food grade silicone oil to make the curling top pressure well-distributed to avoid the burst, which will improve the paper cup aesthetic degree. Compared with once curling, twice curling is more suitable on high speed machine which makes the cup curling tight and better-looking.To this step, a cup is done. The cups will be blown to the acrylic pipe to the collection table. Each stack quantity will be counted.
